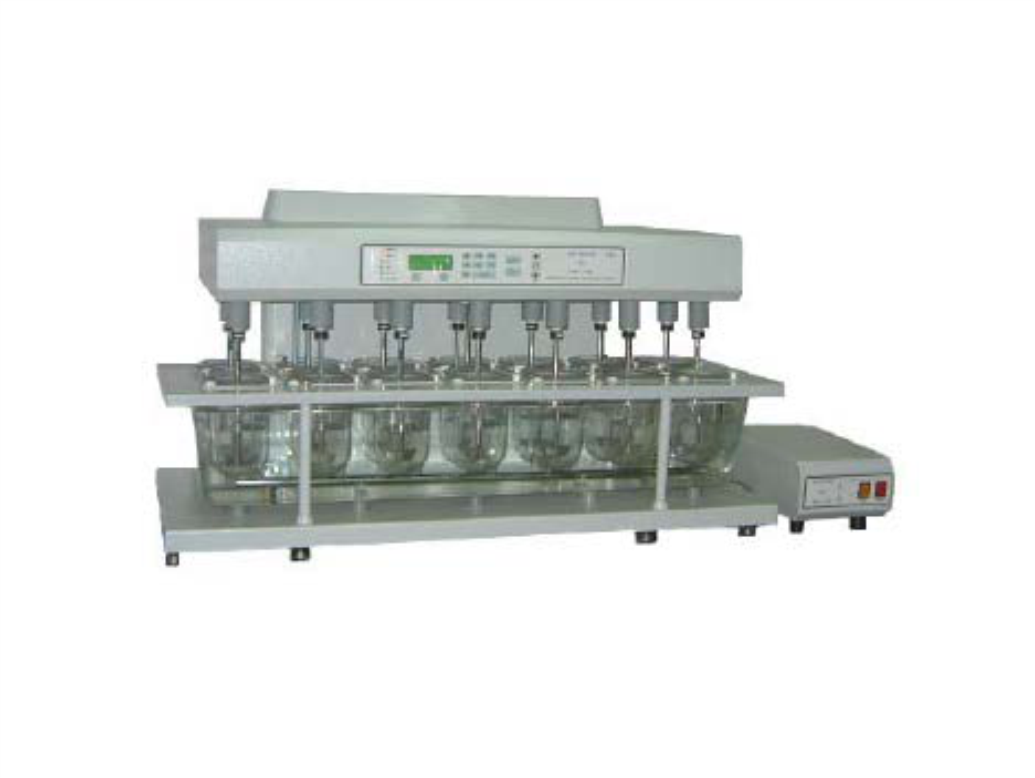

TABLET DISSOLUTION TESTER – SPDT 14L

Tablet Dissolution Tester – SPDT 14L

Home
Tablet Dissolution Tester

Tablet Dissolution Tester - SPDT 14L

Tablet Dissolution Tester – SPDT 14L

  • Complies with USP, IP, EUR Specifications
  • Supports USP 1, 2, 5, 6 and Intrinsic Test Method
  • Ideal for Sustained and Controlled Release Products
  • 8 stations with easy Snap-Fit shafts for paddles and baskets
  • Moulded water bath with sturdy top plate
  • Magnetically coupled water circulating pump for precise temperature control of the water bath
  • Programmable wake-up for temperature control
  • Precise individual vessel centering system
  • Integrated low evaporation vessel lid
  • 20 Programmable Protocols
  • 12 Programmable Sampling Intervals
  • Facilitates Online / Offline automation
  • Motorized telescopic lift
  • 20 x 4 character backlit LCD Display
  • Adjustable leveling of instrument
  • Online validation of RPM and Temperature
  • Ergonomic design for user friendly operation
  • Designed to minimize routine validation
  • Incorporates various safety features
  • Automatic Height adjustment on method selection
  • Motorized sampling manifold for precise and accurate sampling
  • Simultaneous dispensing of tablet
  • Complies to GLP standards

Specifications

  • Model: SPDT-14L
  • Speed Range: Variable Speed from 25 to 200 RPM
  • Temperature Range: ± 1 RPM
  • Temperature Accuracy: ± 0.2°C
  • No. of Protocols: 20 Maximum
  • Sample Interval: Maximum 12 of 01 Min to 23 Hrs, 59 Min
  • Printer Interface: Centronics Parallel Port
  • Printer Supported: 80 column Dot Matrix Printer
  • Bath: Clear Acrylic Moulded Water Bath
  • Bath Size (W x D x H): 705 mm x 374 mm x 200 mm (Approx.)
  • Heater: 1 Kilowatt / 230V A.C., S.S. 304 with Sensor
  • Stirrer Unit Fuse: T 1 Amp
  • Dimensions (W x D x H): 705 mm x 505 mm x 645 mm (Approx.)
  • Electrical Power:
    • 220/230 VAC, 50/60 Hz, 1.3 kW / 6 Amp
    • 110 VAC, 50/60 Hz, 1.3 kW / 10 Amp

Spectralab’s Tablet Dissolution Tester accurately measures drug release rates, providing reliable and repeatable results for quality control and R&D. It ensures full compliance with USP, IP, EUR, and other major pharmacopeial standards for guaranteed data integrity.

For more information on the Tablet Dissolution Tester – SPDT 14L and its specifications, reach out to Spectralab. Contact us today for pricing and details.
