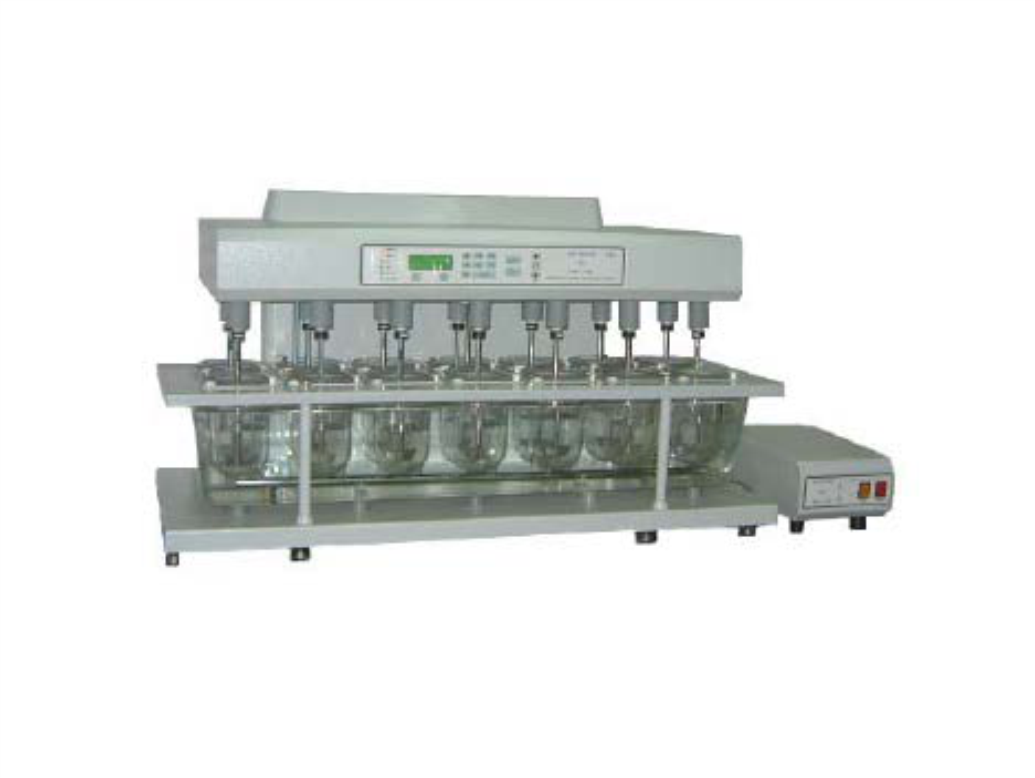

Tablet Dissolution Tester – SPDT 14L
- Complies with USP, IP, EUR Specifications
- Supports USP 1, 2, 5, 6 and Intrinsic Test Method
- Ideal for Sustained and Controlled Release Products
- 8 stations with easy Snap-Fit shafts for paddles and baskets
- Moulded water bath with sturdy top plate
- Magnetically coupled water circulating pump for precise temperature control of the water bath
- Programmable wake-up for temperature control
- Precise individual vessel centering system
- Integrated low evaporation vessel lid
- 20 Programmable Protocols
- 12 Programmable Sampling Intervals
- Facilitates Online / Offline automation
- Motorized telescopic lift
- 20 x 4 character backlit LCD Display
- Adjustable leveling of instrument
- Online validation of RPM and Temperature
- Ergonomic design for user friendly operation
- Designed to minimize routine validation
- Incorporates various safety features
- Automatic Height adjustment on method selection
- Motorized sampling manifold for precise and accurate sampling
- Simultaneous dispensing of tablet
- Complies to GLP standards
Specifications
- Model: SPDT-14L
- Speed Range: Variable Speed from 25 to 200 RPM
- Temperature Range: ± 1 RPM
- Temperature Accuracy: ± 0.2°C
- No. of Protocols: 20 Maximum
- Sample Interval: Maximum 12 of 01 Min to 23 Hrs, 59 Min
- Printer Interface: Centronics Parallel Port
- Printer Supported: 80 column Dot Matrix Printer
- Bath: Clear Acrylic Moulded Water Bath
- Bath Size (W x D x H): 705 mm x 374 mm x 200 mm (Approx.)
- Heater: 1 Kilowatt / 230V A.C., S.S. 304 with Sensor
- Stirrer Unit Fuse: T 1 Amp
- Dimensions (W x D x H): 705 mm x 505 mm x 645 mm (Approx.)
- Electrical Power:
- 220/230 VAC, 50/60 Hz, 1.3 kW / 6 Amp
- 110 VAC, 50/60 Hz, 1.3 kW / 10 Amp
Spectralab’s Tablet Dissolution Tester accurately measures drug release rates, providing reliable and repeatable results for quality control and R&D. It ensures full compliance with USP, IP, EUR, and other major pharmacopeial standards for guaranteed data integrity.
