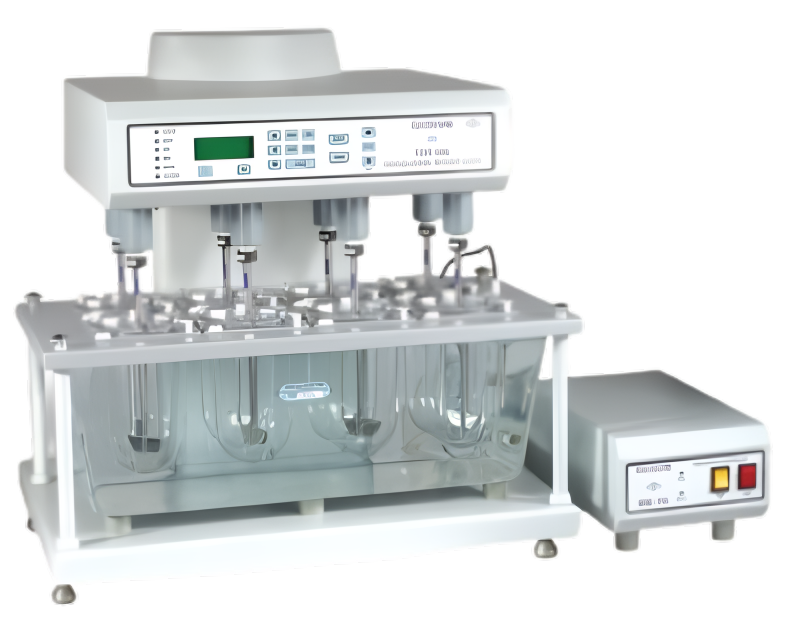

TABLET DISSOLUTION TESTER SPDT – 08L

Tablet Dissolution Tester SPDT – 08L

Tablet Dissolution Tester SPDT – 08L

  • Complies with USP, IP, EUR Specifications
  • Supports USP 1, 2, 5, 6 and Intrinsic Test Method
  • Ideal for Sustained and Controlled Release Products
  • 8 stations with easy Snap-Fit shafts for paddles and baskets
  • Moulded water bath with sturdy top plate
  • Magnetically coupled water circulating pump for precise temperature control of the water bath
  • Programmable wake-up for temperature control
  • Precise individual vessel centering system
  • Integrated low evaporation vessel lid
  • 20 Programmable Protocols
  • 12 Programmable Sampling Intervals
  • Facilitates Online / Offline automation
  • Motorized telescopic lift
  • 20 × 4 character backlit LCD Display
  • Adjustable leveling of instrument
  • Online validation of RPM and Temperature
  • Ergonomic design for user friendly operation
  • Designed to minimize routine validation
  • Incorporates various safety features
  • Automatic Height adjustment on method selection
  • Motorized sampling manifold for precise and accurate sampling
  • Simultaneous dispensing of tablet
  • Complies to GLP standards

Specifications

  • Model: SPDT-08L
  • Speed Range: Variable Speed from 25 to 200 RPM
  • Temperature Range: ± 1 RPM
  • Temperature Accuracy: ± 0.2°C
  • No. of Protocol: 20 Maximum
  • Sample Interval: Maximum 12 of 01 Min to 23 Hrs, 59 Min
  • Printer Interface: Centronics Parallel Port
  • Printer Supported: 80 column Dot Matrix Printer
  • Bath: Clear Acrylic Moulded water Bath
  • Bath Size (W × D × H): 705 mm × 374 mm × 200 mm (Approx.)
  • Heater: 1 Kilo Watt / 230V A.C., S.S. 304 with Sensor
  • Stirrer Unit Fuse: T 1 Amp
  • Dimensions (W × D × H): 705 mm × 505 mm × 645 mm (Approx.)
  • Electrical Power:
    • 220/230 VAC, 50/60 Hz, 1.3 kW / 6 Amp
    • 110 VAC, 50/60 Hz, 1.3 kW / 10 Amp

This is a dissolution testing apparatus used in pharmaceuticals to measure drug release from tablets and capsules.
It offers precise temperature control, programmable protocols, and automation for accurate, compliant testing.

For more information on the Tablet Dissolution Tester SPDT – 08L and its specifications,
reach out to Spectralab. Contact us today for pricing and details.
