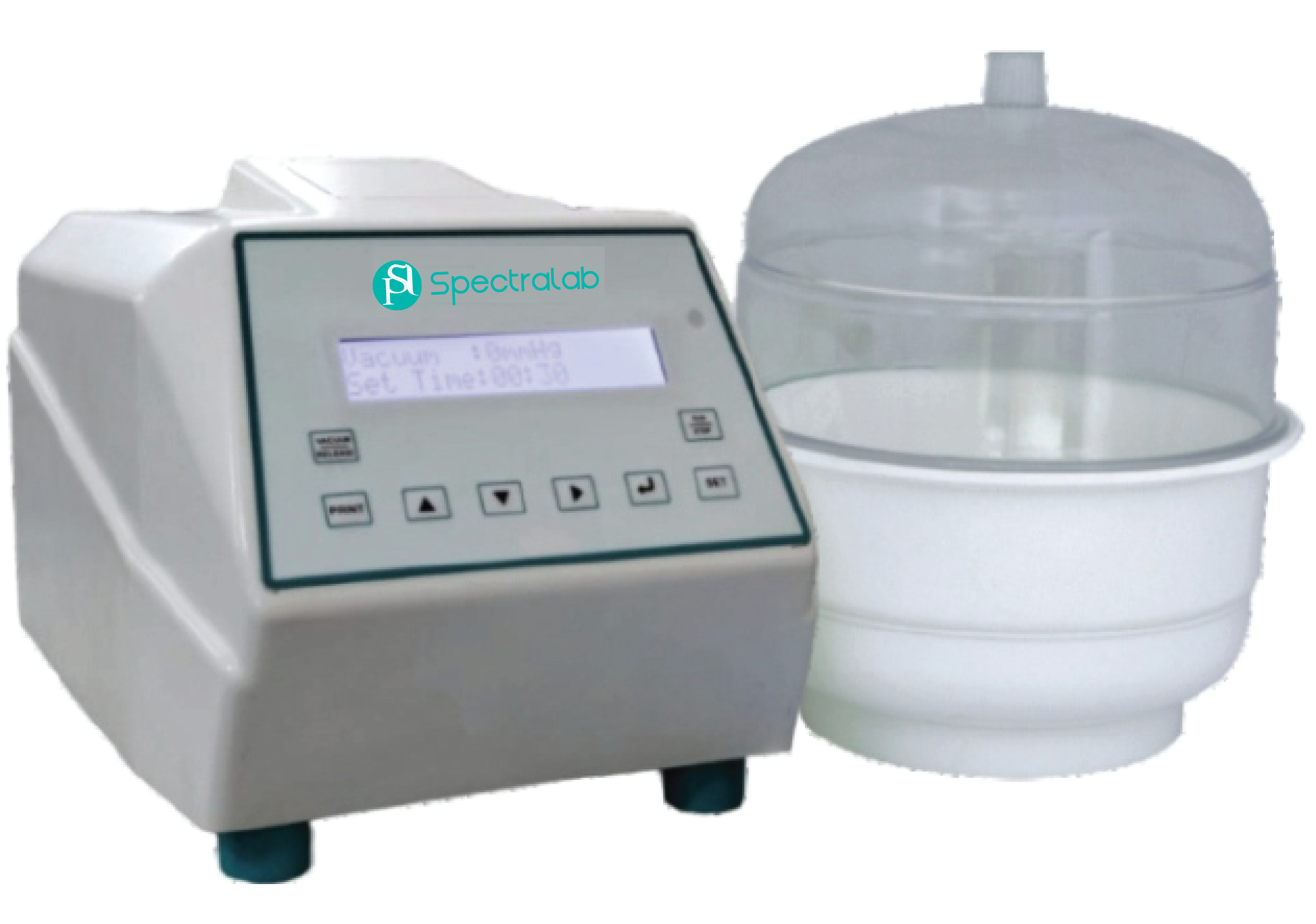

LEAK TESTER – SPLT 101

Leak Tester – SPLT 101

Leak Tester – SPLT 101

  • Smart verification of leak detection using the widely accepted and cost-efficient blue dye method
  • Programmable vacuum level and hold time
  • Oil-less vacuum pump
  • CGMP model
  • Compliance with USP and international package practice specifications
  • Slow venting for better precision
  • Printout of test report via serial port
  • Vacuum calibration made easy with inbuilt calibration menu
  • Fully micro controller based equipment (First time in India)
  • Large LCD module for displaying vacuum and an electronic countdown time
  • Built in with a rugged oil free vacuum pump
  • Vacuum display and timer of the LCD module is factory calibrated
  • User-friendly equipment with easy controls
  • Fully transparent Polycarbonate Vacuum Desiccator
  • Portable, Efficient, Low power consumption
  • Software calibration of vacuum
  • Selectable time 60 sec or 80 sec

Specifications

  • Model: SPLT-101
  • Vacuum level range: Better than 650 mm Hg at MSL
  • Timer range: Up to 99 minutes
  • Printer interface: Serial
  • Vacuum setting level:
    • Less than 400 mm of Hg ± 10 mm of Hg within 30 sec.
    • Above 400 mm of Hg ± 5 mm of Hg within 30 sec.
  • Vacuum sensor accuracy: ±2 mm Hg over full scale
  • Dimensions (W x L x H): 248 mm x 377 mm x 248 mm
  • Electrical power:
    • 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp
    • 110 VAC, 50/60 Hz, 1.3 kW/10 Amp
  • Weight: 10 Kg

Leak Tester provides accurate detection of leaks in packaging and products, ensuring quality and compliance.
Connect with us to know more about advanced leak testing solutions for industries in India.

For more information on the Leak Tester – SPLT 101 and its specifications, reach out to Spectralab.
Contact us today for pricing and details.
